Cast-In Liquid Cooled Band Heaters – In high-output plastics extrusion, maintaining an absolute, unyielding grip on temperature profiles is the difference between prime product yield and catastrophic resin degradation. As extruder screws turn, they generate massive frictional kinetic heat. Without a way to simultaneously inject uniform heat and rapidly pull excess heat away, your barrel temperatures will run away.
Sanvi Heat’s Cast-In Liquid Cooled Band Heaters Aluminum Cast Heater are specifically engineered to provide this vital dual-action thermal management. Designed for heavy-duty plastic extruders, blow molding machinery, and high-precision downstream equipment, these elements offer an all-in-one heating and cooling mechanism.
Dual-Function Engineering: How It Works
A Cast-In Liquid Cooled band heater functions as a highly efficient heat exchanger wrapped directly around your machine’s barrel.

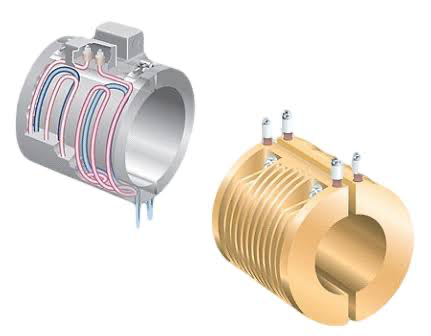

Sanvi Heat Dual-Tube Cast-In Internal Configuration. Source: Hampton Controls
To build these heavy-duty components, our engineers precisely align custom-formed, high-grade electrical heating elements alongside seamless, heavy-walled cooling tubes (typically made of stainless steel or nickel alloys).
This entire internal assembly is then cast directly into a precision-machined metal matrix—usually Aluminum for standard applications up to 400°C, or Bronze/Brass for high-temperature engineered resins requiring up to 535°C. By embedding both systems inside a single solid casting, we eliminate air gaps, providing unparalleled thermal conductivity to the barrel surface.
Critical Benefits for Plastics Extrusion and Downstream Lines
Managing temperature transitions across your extrusion and downstream stages yields immediate compounding benefits across your production line.
1. Precision Temperature Control & Anti-Degradation
Certain polymers—such as PVC, Fluoropolymers, and specialized engineering resins—possess incredibly tight processing windows. If the shear heat from the extruder screw pushes the barrel temperature even a few degrees too high, the resin burns, releases corrosive gases, or ruins the batch.
- The Cooling Function: When your control panel senses a temperature spike, it instantly triggers a solenoid valve to flush water or thermal oil through the embedded cooling lines.
- The Result: The liquid rapidly pulls the excess heat out through the cast-in metal body, dropping the barrel back into the safe processing zone within seconds.
2. Rugged Durability in Harsh Environments
Traditional ceramic or mica band heaters are vulnerable to environmental contaminants. If plastic resin drips onto them, or if ambient moisture levels are high, they short circuit and fail.
- The Sanvi Heat Build: Our Cast-In Liquid Cooled Band Heaters seal the electrical elements completely inside solid metal. They are entirely impervious to plastic overflow, physical impacts, and harsh industrial environments, offering an operational lifespan that easily outperforms standard band heaters.
3. Seamless Downstream Integration
Thermal control doesn’t stop at the extruder barrel. Precision downstream components like pelletizers, screen changers, pipe/profile dies, and blown film heads require uniform heat to prevent premature freeze-off or uneven wall thicknesses. Sanvi Heat custom-machines cast-in bands to accommodate specialized bolt holes, cutouts, and terminal types, ensuring a flush fit on all proprietary downstream hardware.
Regional Technical Focus: European Stability vs. Middle Eastern Ambient Variables
Sanvi Heat optimizes every thermal system to withstand the unique geographical challenges faced by your production facility.
| Regional Operational Factor | European Extrusion Plants | Middle Eastern Processing Facilities |
|---|---|---|
| Primary Engineering Challenge | Strict Energy Efficiency & Zero Scrap Targets | Extreme Ambient Temperatures & Closed-Loop Cooling |
| Sanvi Heat Material Optimization | High-precision Aluminum casting designed for maximum heat retention and swift response loops to reduce utility draw. | Heavy-walled stainless steel cooling tubes designed to resist scaling from high-salinity or recycled closed-loop water systems. |
| Regulatory & Safety Compliance | Standard CE conformity and custom ATEX configurations for compounding plants handling volatile additives. | Robust, dust-proof terminal enclosures designed to prevent sand and particulates from compromising electrical connections. |
Minimize Scrap, Maximize Throughput
Investing in premium thermal management safeguards your machinery against runaway shear heat, cuts down setup times, and dramatically reduces product scrap rates. Whether you are running a high-speed packaging film line in Germany or an industrial pipe extrusion plant in Saudi Arabia, Sanvi Heat’s Cast-In Liquid Cooled Band Heaters provide the structural rigidity and thermal agility your lines demand.
Ready to upgrade your extruder barrels or downstream processing equipment? [Contact Sanvi Heat’s Engineering Group Today] to configure a Cast-In Liquid Cooled Band Heaterssolution tailored to your exact machine dimensions and resin profiles.
