How to Replace EGO Thermostats and Selector Switches with Sanvi Heat Components

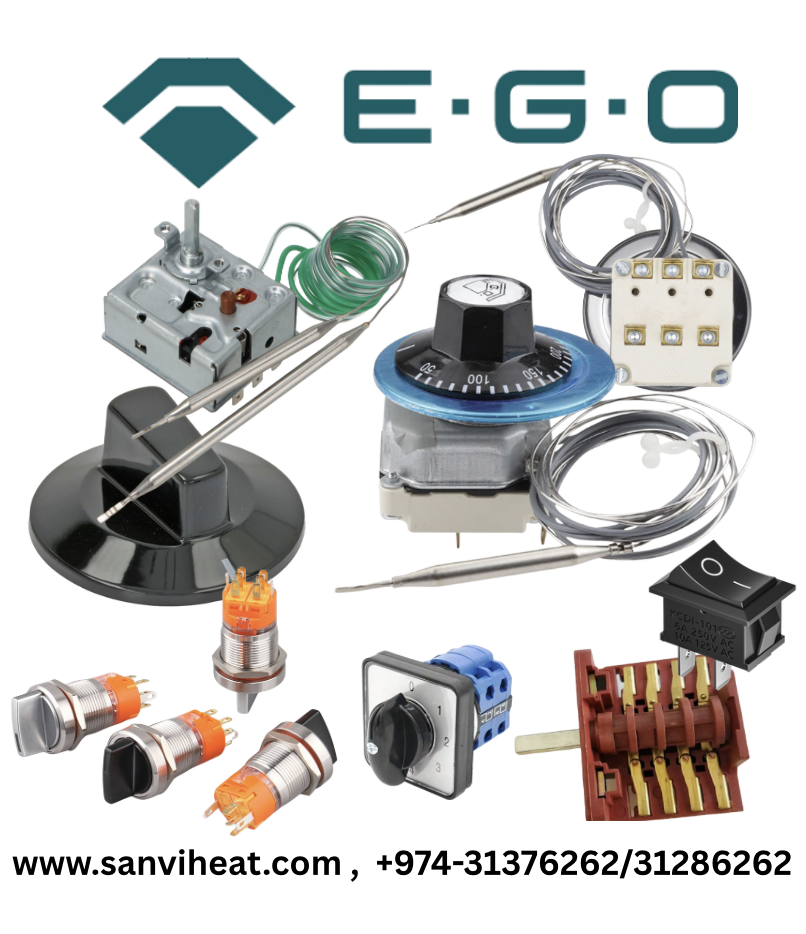

EGO Thermostats – When maintaining heating and cooling systems—ranging from commercial ovens and laboratory equipment to industrial HVAC units—precision and reliability are everything. For decades, EGO capillary thermostats and multi-position selector switches have been the industry standard.

However, supply chain shifts and maintenance budgets have led engineering teams to seek high-quality, drop-in alternatives. Sanvi Heat has emerged as a top-tier brand for heavy-duty replacement heating components, offering exact electrical and mechanical compatibility.

This guide outlines how to seamlessly swap out failing EGO controls for Sanvi Heat components without compromising on safety or performance.

Why Upgrade to Sanvi Heat Components?

EGO and Sanvi Heat operate on the same fundamental principles of mechanical thermal regulation and multi-circuit routing. Transitioning to Sanvi Heat provides several distinct advantages:

• Cost Efficiency: Drastically reduces overhead costs for large facility maintenance or commercial kitchen repairs.
• Identical Form Factor: Designed with standard European mounting holes, shaft diameters, and terminal layouts to avoid structural modifications.
• Robust Electrical Ratings: Built to handle typical industrial currents (frequently rated at 16A to 20A at 250V), ensuring compatibility with heavy resistive heating elements.

Identifying Your Components

Before beginning a replacement project, it is essential to map your existing EGO parts to their Sanvi Heat equivalents.

What to check: Verify the temperature range (e.g., 30°C–110°C for mild heating, or 50°C–300°C for commercial ovens), capillary tube length, and bulb diameter.

2. Selector Switches

The rotary selector switch dictates which heating elements (top, bottom, or fan assist) receive power.

• What to check: Match the number of switching positions (e.g., 3-stage, 5-stage, or 7-position) and ensure the rear pin schematic matches your wiring harness.

Step-by-Step Replacement Guide

Safety Warning: Turn off and completely isolate the main power supply before opening any heating or cooling equipment panel. Verify the circuit is dead using a calibrated multimeter.

1.Document and Label the Existing Wiring

Prerequisite

Remove the control panel housing. Before disconnecting any wires from the old EGO thermostat or switch, take a clear photograph. Use wire labels to mark the terminal numbers (e.g., P1, 1, 2) to ensure they correspond precisely with the new Sanvi Heat layout.

2. Extract the Old Components

Removal

Pull off the external control knobs. Unscrew the two faceplate mounting screws holding the EGO component to the chassis. Gently pull the old thermostat bulb out of its sensing well, taking care not to kink or snap the copper capillary tube.

3. Mount the Sanvi Heat Replacement

Mechanical Fit

Position the new Sanvi Heat thermostat or selector switch behind the panel. Secure it tightly using the original mounting screws. If replacing a thermostat, carefully route the new capillary bulb back into the sensing pocket, ensuring it makes solid physical contact with the area it needs to measure.

4. Terminate the Electrical Connections

Wiring

Transfer the labeled wires one by one onto the new Sanvi Heat terminals. Sanvi Heat utilizes industry-standard 6.3mm male spade terminals, allowing your existing female spade connectors to slide right on. Ensure all connections are tight to prevent high-resistance hot spots.

5. Test and Calibrate

Verification

Reassemble the control panel, restore power, and turn on the unit. Use a digital thermometer to verify that the equipment’s actual ambient temperature aligns with the settings marked on your control dial.

Troubleshooting & Cross-Referencing Terminals

While Sanvi Heat components are designed as direct replacements, minor terminal numbering differences can sometimes occur:

Original EGO Terminal	Sanvi Heat Equivalent	Function
P1 / P2	L1 / L2 or P1 / P2	Main Power Input (Line)
1	1	Normally Closed (NC) – Breaks on temperature rise
2	2	Normally Open (NO) – Closes on temperature rise (often used for cooling/alarms)

If your selector switch feels stiff or the heating elements are cycling in the incorrect order, re-verify the internal cam mapping of your stages using a continuity meter.

_______________________________________________________________________________________

Frequently Asked Questions (FAQs)

Can I use a Sanvi Heat thermostat in a cooling/refrigeration application?

Yes. If you choose a model with a lower temperature spectrum (e.g., -35°C to +35°C) and utilize the NO (Normally Open) terminal, the circuit will close on temperature rise, activating your cooling compressor or exhaust fans.

Do Sanvi Heat components require calibration out of the box?

Generally, no. Factory calibration ensures high accuracy. However, if your sensing bulb cannot sit fully inside the original thermal well, you may observe a slight temperature offset that requires dial adjustment.https://www.egoproducts.com/en/products/appliance-control-elements/thermostats

EGO Thermostat

55.17204.010, Temperature range 0⁰C – 40⁰C

55.17212.020, Temperature range 30⁰C – 85⁰C

55.17212.030 , Temperature range 30⁰ C – 110⁰ C

55.17222.010 , Temperature range 30⁰C – 120⁰C

55.17032.020 , Temperature range 60⁰C – 200⁰C

55.17262.020 ,Temperature range 50⁰C – 320⁰C

55.17032.010,

Temp. Range 100-180°C Adjustable Single Phase Capillary Length 840mm,

EGO Thermostats 55.18022.010 Temp. Range 110°C Adjustable Single Phase Capillary Length

EGO Thermostats 55.19022.819 Temp. Range 30-110°C Adjustable Single Phase Capillary Length 900mm, EGO Selector Switch 46.23966.500 3 Position 16 amp,

EGO Selector Switch 43.35232.000 5 Position 32 amp, EGOThermostats 55.17032.010 Temp. Range 100-180°C Adjustable Single Phase Capillary Length 840mm, Three Phase Thermostats 55.34022.030 Temp. Range 110°C Adjustable Capillary Length EGO, EGO Selector Switch 49.21015.705 1 Position 16 amp, Single Phase Thermostats 55.13022.010 Temp. Range 30-110°C Adjustable Capillary Length 870mm EGO, Single Phase Thermostats 55.13202.360 Temp. Range 0-40°C Adjustable Capillary Length, EGO Selector Switch 41.41723.000 1 Position 16 amp, Single Phase Thermostats 55.13212.690 Temp. Range 0-90°C Adjustable Capillary Length EGO, Single Phase Thermostats 55.13069.500 Temp. Range 50-320°C Adjustable Capillary Length 870mm, Single Phase Thermostats 55.19035.802 Temp. Range 100-185°C Adjustable Capillary Length 1800mm, Thermostats 56.10511.520 Temp. Range 57°C Reset + Adjustable Three Phase Capillary Length, EGO Selector Switch 49.24215.000 4 Position 16 amp, Adjustable Single Phase  Thermostats 55.13232.140 Temp. Range 35-200°C Capillary Length, EGO Selector Switch 49.24015.000 4 Position 16 amp, Thermostats 55.19082.805 Temp. Range 85-455°C Adjustable Single Phase Capillary Length 870mm, EGO Selector Switch 42.02900.014 2 Position 16 amp, Thermostats 55.17022.050 Temp. Range 30-120°C Adjustable Single Phase Capillary Length 880mm, EGO Selector Switch 49.27215.500 7 Position 16 amp, EGO Selector Switch 41.32723.010 7 Position 16 amp, Thermostats 55.13222.250 Temp. Range 110°C Adjustable Single Phase Capillary Length, EGO Selector Switch 41.32723.030 7 Position 16 amp, Thermostats 55.32535.010 Temp. Range 150°C Reset Three Phase Capillary Length, Thermostats 55.34055.020 Temp. Range 50-308°C Adjustable Three Phase Capillary Length 1740mm, EGO Selector Switch 49.26915.769 6 Position 16 amp, Thermostats 55.13222.360 Temp. Range 10-110°C Adjustable Single Phase Capillary Length, Three Phase Thermostats 55.32569.814 Temp. Range 365°C Reset Capillary Length 1300mm EGO, Thermostats 55.13525.050 Temp. Range 126°C Reset Single Phase Capillary Length 1730mm, Thermostats 55.32542.835 Temp. Range 225°C Reset Three Phase Capillary Length, Thermostats 55.34052.020 Temp. Range 60-308°C Adjustable Three Phase Capillary Length 880mm, Thermostats 55.32564.040 Temp. Range 350°C Reset Three Phase Capillary Length 1490mm, Thermostats 55.19662.010 Temp. Range 100-350°C Adjustable Single Phase Capillary Length 800mm, Three Phase Thermostats 55.34032.130 Temp. Range 180°C Adjustable Capillary Length 880mm, Three Phase Thermostats 55.32532.020 Temp. Range 169°C Reset Capillary Length 890mm, Thermostats 55.13001.270 Temp. Range 45°C Adjustable Single Phase Capillary Length 870mm, EGO Selector Switch 46.27266.500 7 Position 16 amp, Thermostats 55.34059.801 Temp. Range 292°C Adjustable Three Phase Capillary Length, Thermostats 55.13039.250 Temp. Range 190°C Adjustable Single Phase Capillary Length, Single Phase Thermostats 55.17222.010 Temp. Range 30-120°C Adjustable Capillary Length 900mm, EGO Selector Switch 43.27232.000 7 Position 32 amp, EGO Selector Switch 42.04000.029 4 Position 16 amp, Thermostats 55.17212.020 Temp. Range 30-85°C Adjustable Single Phase Capillary Length, Single Phase Capillary Thermostats 55.13569.010 Temp. Range 329°C Reset Length 1230mm, EGO Selector Switch 46.24266.508 4 Position 16 amp, SKU: 46.24266.508, EGO Thermostats 55.19632.020 Temp. Range 55-185°C Adjustable Single Phase Capillary Length 900mm, Three Phase dual Capillary Thermostats 55.60011.190 Temp. Range 110°C Adjustable , EGO 16 amp Selector Switch 49.41015.300 1 Position, SKU: 49.41015.300, Thermostats 55.13012.010 Temp. Range 30-85°C Adjustable Single Phase Capillary Length 830mm, EGO 4 Position Selector Switch 43.24232.000 32 amp,
