Are Ceramic Bobbin Heaters Easy to Clean?
Ceramic Bobbin Heater – When selecting a heating solution for industrial or domestic applications, performance is usually the top priority. However, ceramic heater maintenance and hygiene are just as critical for long-term efficiency. At Sanvi Heat, we frequently get asked: “How much effort does it take to keep a ceramic bobbin heater clean?”The short answer? Because of the unique properties of ceramic, these heaters are among the most user-friendly components to maintain. Here is a breakdown of why ceramic bobbin heaters—including Cordierite Porcelain varieties are a breeze to manage.
1. The Non-Porous Advantage
The primary reason ceramic Bobbin Heater Elements are so easy to clean is the material itself. High-quality ceramic is non-porous. Unlike metals that can oxidize or plastics that can absorb odors and stains, ceramic creates a smooth barrier.
2. Routine Care: From Dusting to Deep Cleaning
Maintaining your Ceramic Core Heaters doesn’t require a specialized toolkit. Most maintenance can be handled with items you already have:
No Seepage: Contaminants like oils, grime, and dust sit on the surface rather than soaking in.
Bacterial Resistance: Because the surface doesn’t absorb moisture, it doesn’t become a breeding ground for bacteria, which is essential for food-grade or medical applications
Light Maintenance: A simple, dry microfiber cloth is usually all you need to remove dust and loose debris. Regular dusting prevents buildup that could eventually lead to “burnt-on” smells during operation.
Tackling Grease: If you are operating in an environment with airborne grease or oils, a mild detergent solution (warm water and a drop of dish soap) works wonders.
Crucial Tip: Use a damp—not soaking—cloth. It is vital to ensure that no water enters the electrical terminals or the internal wiring of the heating element.
3. Specialized Materials: Cordierite Porcelain
At Sanvi Heat, we often utilize Ceramic Cordierite Porcelain for our bobbin elements. This material is prized for its thermal shock resistance, meaning it can handle rapid heating and cooling cycles without cracking.
Durability during cleaning: This mechanical strength makes the element more resilient during handling, though you should still treat the resistance wires with care.
Pro-Tips for Safe Cleaning
To ensure you don’t accidentally damage your Ceramic Bobbin Core Heating Element, follow these “Golden Rules”:
Avoid Abrasives: Never use steel wool, wire brushes, or scouring powders. These can create micro-scratches on the ceramic surface, which eventually become “weak points” where cracks can form under thermal stress.
Protect the Wires: The heating wire (often Ni Cr 80/20) is wound precisely around the core. Excessive pressure or snagging during cleaning can displace the wire, leading to short circuits or “hot spots.”
Cool Down First: Never attempt to clean a heater while it is energized or still hot. Thermal shock from a damp cloth on a glowing element can cause immediate fracturing.
Why the Simple Design Wins
Unlike complex heat exchangers with cooling fins and hidden crevices, the Sanvi Heat Ceramic Bobbin Heater features a streamlined, cylindrical design.
No Hidden Grime: There are very few “nooks and crannies” where contaminants can hide.
Easy Access: Whether you are using it in a radiant tube or an open-air process, the geometry allows for a 360-degree wipe-down in seconds.
In any industrial setting, time is money. Choosing a heating element that is easy to clean means less downtime and a longer lifespan for your equipment. With their non-porous surfaces and high-durability Cordierite cores, Sanvi Heat’s bobbin heaters are as reliable as they are easy to maintain.
Do you need a custom-sized Ceramic Bobbin Heater for your next project? Whether you’re looking for standard replacements or a custom procurement discussion, our team is ready to provide the high-temperature solutions you need.

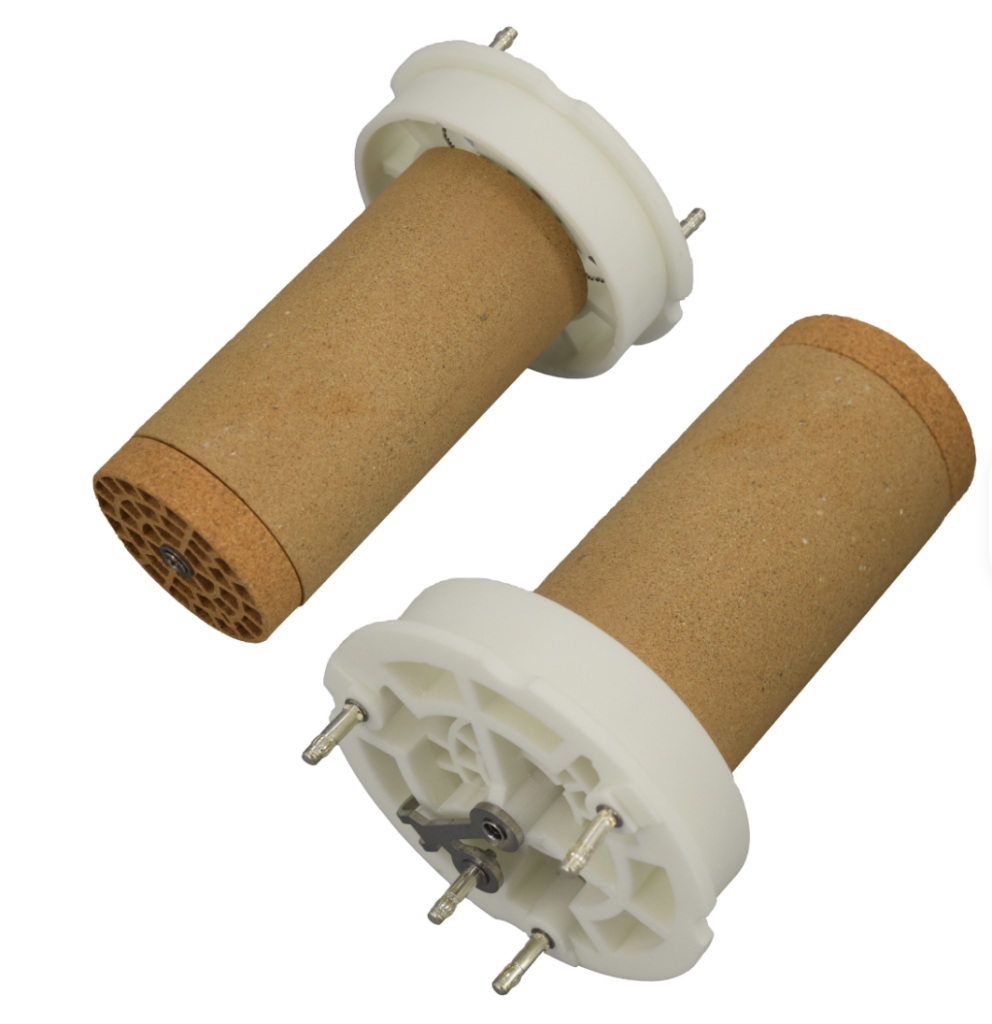

The Anatomy of a Superior Hot Air Gun Element
A high-quality hot air gun heater isn’t just a wire; it’s a sophisticated thermal assembly. Our elements are built to outperform:
High-Refractory Ceramic Core: We use premium ceramic bobbins that act as a heat-resistant skeleton. This material can withstand extreme thermal cycling without cracking or warping.
Precision-Wound Resistance Wire: Utilizing high-grade Ni Cr 80/20 alloy, the wire is wound uniformly around the ceramic core to ensure even airflow heating and prevent “cold spots.”
Optimal Airflow Design: The grooved structure of the ceramic core allows air to pass through with minimal resistance, maximizing the heat transfer from the wire to the nozzle.
Thermal Protection: Many of our ceramic heating elements are designed to integrate with thermal sensors, preventing the gun from overheating and extending the life of the tool.
