The Ultimate Guide to Sanvi Heat Titanium & AISI 316L Inline Swimming Pool Heaters

/ Heating Element, Manufacturing, Supplier / By

Swimming Pool Heaters – When the seasons change, don’t let a drop in temperature keep you away from your Swimming Pool . Whether you own a backyard oasis or a commercial spa, the key to year-round swimming is a heating system that is powerful, efficient, and—most importantly—built to withstand the harsh chemistry of pool water.

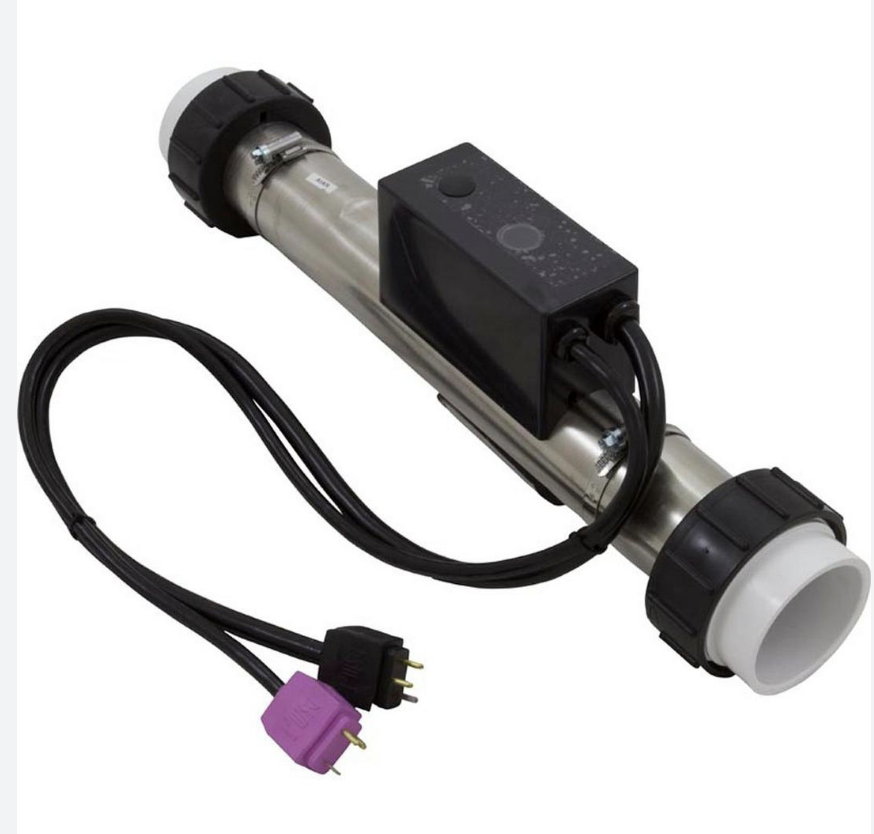

Introducing the Sanvi Heat Compact Electrical Inline Series: a robust heating solution engineered with Titanium and to deliver unparalleled performance.

Swimming Pool Heaters

Engineered for the Elements: Titanium & AISI 316L

Swimming pool water is a challenging environment for metal. Between chlorine levels, salt systems, and pH balancing, standard heaters often fall victim to corrosion. Sanvi Heat solves this with premium metallurgy:

  • AISI 316L Stainless Steel: Our heater bodies are constructed from acid-proof 316L stainless steel, offering superior resistance to pitting and crevice corrosion compared to standard grades.
  • Titanium Elements: For saltwater pools or high-chlorine environments, our Titanium heating elements are virtually indestructible. Titanium creates a natural oxide film that prevents rust and chemical erosion, ensuring your heater lasts for years, not just seasons.

Versatile Power: From 3kW to 120kW

Every pool has unique thermal requirements. Our inline Swimming Pool Heaters are designed to scale with your needs:

  • Residential & Spas: Compact models starting at 3kW are perfect for hot tubs and smaller plunge pools.
  • Commercial & Large Pools: Our heavy-duty 36kW units provide the rapid heat-up times required for large-volume swimming pools.
  • Flexible Voltage: To integrate seamlessly with your existing electrical grid, units are available in both 220V (Single Phase) and 400V (Three Phase) configurations.

How Do Electric Swimming Pool Heaters Work? A Deep Dive into Inline Efficiency

At first glance, an electric Swimming Pool Heaters seems like a simple appliance, but it is actually a precision-engineered component of your pool’s circulation system. Understanding how it functions—and how it interacts with your existing equipment—is the key to a perfectly heated swim.

1. Pre-Installation Essentials

Before you pick up a wrench, preparation is your best safety tool:

  • Consult the Manual: Every model has specific requirements. Always keep the manufacturer’s instructions at hand.
  • Power Safety: Ensure the main power supply to the technical room is completely shut off before beginning any work.
  • Skill Check: If you are not comfortable with electrical wiring or PVC solvent welding, we strongly recommend hiring a certified professional.

2. The Ideal Plumbing Layout: The By-Pass System

If space in your technical room allows, we highly recommend installing the heater using a By-Pass configuration (a three-valve system).

  • Maintenance: A by-pass allows you to isolate the heater for maintenance or winterization without stopping your pool’s main filtration.
  • Flow Control: It gives you the ability to divert a portion of the water, ensuring the flow rate perfectly matches the heater’s specifications.
  • Placement Rule: The heater must be positioned after the filter but before any water treatment devices (like salt chlorinators or chemical dosers). This protects the heating elements from concentrated chemical damage

3. Positioning for Performance

The “Low Point” Rule: Install the heater at the lowest possible point in the discharge piping. This prevents air pockets from forming inside the tube.

  • Siphon System: In some setups, a siphon (U-bend) is recommended to ensure the Titanium heating elements remain fully submerged in water at all times, even when the pump is off.
  • Direction of Flow: Look for the flow arrow on the heater body. Most Sanvi Heat units are factory-preset for left-to-right flow, but many models allow you to reverse this via an internal switch if your plumbing requires it.

4. Electrical Requirements

The heater must be “slaved” to the filtration pump. This means the heater only activates when the pump is moving water—this is a critical safety measure to prevent dry firing.

  • Safety Switch: Your electrical panel must include a 30 mA residual current device (RCD/GFCI) and a properly rated thermal circuit breaker to protect against surges and leaks.
  • Grounding: Ensure the unit is perfectly grounded to prevent any risk of electrical shock in the water.

Why Choose Sanvi Heat Inline Swimming Pool Heaters?

1. 100% Operational Efficiency

Unlike gas heaters that lose energy through exhaust and heat exchange, Sanvi Heat electrical inline heaters are 100% efficient. Every kilowatt of electricity used is converted directly into heat for your water. This means faster heating and zero wasted energy.

2. Compact & Robust Design

Space in a pump room is often limited. Our heaters feature a “Compact Inline” design, meaning they can be installed directly into your existing pipework without taking up a massive footprint. Despite their small size, the robust construction ensures they handle high-pressure water flow with ease.

3. Safety and Reliability First

At Sanvi Heat, safety isn’t an optional feature. Our pool heaters are equipped with:

  • Overheat Protection: High-limit sensors to prevent the unit from exceeding safe temperatures.
  • Flow Switches: Ensuring the heater only activates when water is moving, preventing “dry firing” and element damage.
  • Constant Temperature Control: Effortlessly maintain your spa or pool at your exact desired temperature.
